New flowmeters with high measuring accuracy
At the end of the last year, we prepared four new models for the range of flowmeters to measure the flow of liquids and gases produced under Italian brand La Tecnica-fluidi.
All types of our flowmeters work reliably within the defined tolerance range. The measured values can be monitored directly on the display or can be transferred to various control and monitoring systems.
For automatization of industrial processes it is important to have and to register reliable measured values of liquids and gases. The new models are characterized by easy installation, easy maintenance and high accuracy of measuring. Thanks to our wide range of products, you can track and measure wide range of flow.
Find the right solution for your industry!
| D-EL | V-VK | S-2007 | G | |
|
|
|
 |
|
|
| Measurement | water | water/air | water | water/air |
| Max. heat resistance | 60°C | 160°C | 70°C | 70°C |
| Depiction | display | scale | scale | display |
| Flow | medium and large | medium and large | medium | medium and small |
| Attachment | under flange/ threaded | threaded | into pipeline by sleeve | threaded |
Flowmeter D-EL
The flowmeter D-EL is used for liquids. It can be mounted to vertical and horizontal flow while maintaining. It is built in two versions: the threaded version, and the version to be inserted between flanges wafer. In a very simple way you can program two alarms on the entire scale, acting on a membrane keyboard.

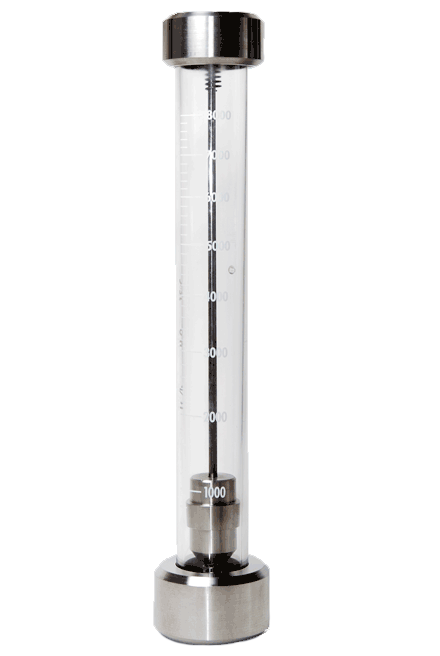

Flowmeter V-VK
The “V-VK” series flowmeters are flow rate measuring devices, suitable for medium and large flow rates of liquids and gaseous fluids. The instantaneous measurement of the flow is read with excellent accuracy on the graduated scale, printed on the calibrated truncated-conical pipe in polycarbonate (makrolon) or polysulphone (non-toxic and unbreakable).
Other characteristics: simple installation, easy maintenance, accuracy ±5%, maximum working pressure 16 bar for metallic structures and 8 bar for plastic structures.
Flowmeter S-2007
The S-2007 flowmeter uses the Pitot tube principle for measurement. The body of the flow meter is made of polymethacrylate PMMA with a maximum heat resistance of 70 ° C. The measurer is fixed with two metallic wrappers. In fact to be employed in filtration, purification, presurization and fireproof plants.
Flowmeter G
The flowmeters G 50 and G 60 are suitable for small and medium flows and are used for liquids or gases. They can be mounted with vertical or horizontal flow, while maintaining a straight pipe equal to 5 DN upstream and downstream of the meter. PMMA is constructed with threaded 1/4 "- 3/8" for the G 50, and 3/8 "- 1/2" for the G 60.
